Bio / Pharma

We provide optimal solutions of cold chain packaging suitable for long-term transport of medicines and specimens.

AIMT’s cold chain packaging protects temperature of vaccines, medicines, specimens, etc from deviating during transportation.

AIMT Va℃-pack

  • Up to 150 hours in 3 temperature ranges : 2~8℃, -15~-25℃, -60~-80℃
  • Designed with safety factor considering the characteristics of VIP
  • Full inspection to ensure consistent performance and maintenance/repair service with mobile quality tester
  • Temperature data logger can be built in and real-time monitoring is available (option)
  • Customizable with various size

Spec.

Model
Va℃-pack 5 L
Va℃-pack 10L
Va℃-pack 20L

External Dim

(W x L x H)

320x320x320 mm
370x370x360 mm
420x420x430 mm

Payload

Dim

(W x L x H)

170x170x170 mm
220x220x220 mm
280x280x280 mm
Volumetric Capacity
5 L
11 L
22 L
Tare
Weight
3.9 kg
5.7 kg
8.3 kg
PCM
2.7 kg
4.8 kg
5.7 kg
Gross
Weight
6.6 kg
10.5 kg
14 kg
Model
Va℃-pack 40 L
Va℃-pack 60L
Va℃-pack 80L
Va℃-pack 110L

External Dim

(W x L x H)

480x480x490 mm
540x540x550 mm
620x520x530 mm
620x620x620mm

Payload

Dim

(W x L x H)

340x340x340 mm
400x400x400 mm
470x390x440 mm
480x480x480 mm
Volumetric
Capacity
40 L
64 L
80 L
110 L
Tare
Weight
10.4 kg
12.5 kg
14.8 kg
16.6 kg
PCM
8.1 kg
8.4 kg
10.2 kg
13.4 kg
Gross
Weight
18.5 kg
20.9 kg
25 kg
30 kg

10L

20L

60L

We provide optimized cold chain packaging solutions tailored for

the long-term transportation of pharmaceuticals and clinical specimens.

ISTA 7D 24H

Model
ISTA 7D 24H
Time
SUMMER
Time
WINTER
Va℃-pack 5L
66hr
To be
updated
96hr
To be
updated
Va℃-pack 10L
60hr
96hr
Va℃-pack 20L
60hr
96hr
Va℃-pack 40L
60hr
96hr
Va℃-pack 60L
60hr
96hr
Va℃-pack 80L
60hr
To be
updated
96hr
To be
updated
Va℃-pack 110L
60hr
96hr

* Able to maintain target temperature from 24hours to 150hours

AIMT Cold Chain Packaging

  • Made up of eco-friendly recycled PET insulation material and high-tech vacuum insulation panel
  • Temperature data logger can be built in and real-time monitoring is available (option)
  • Customizable with various size
Model
External Dim

(W x L x H)

Payload Dim

(W x L x H)

Volumetric Capacity

Tare

Weight

Purpose
Ultra small
290x260x270 mm
250x220x220 mm
5 L
1.6-1.8
kg
for medical specimens collect
(General or Vehicle)
Small
435x280x270mm
395x240x230mm
10 L
2.5-2.8
kg
Medium

510x270x385mm
470x230x345mm
20 L
3.5-3.9
kg
Large
530x510x420mm
490x470x380mm
54 L
7-7.5
kg
for medical specimens delivery

Ultra small

small

Medium

Large

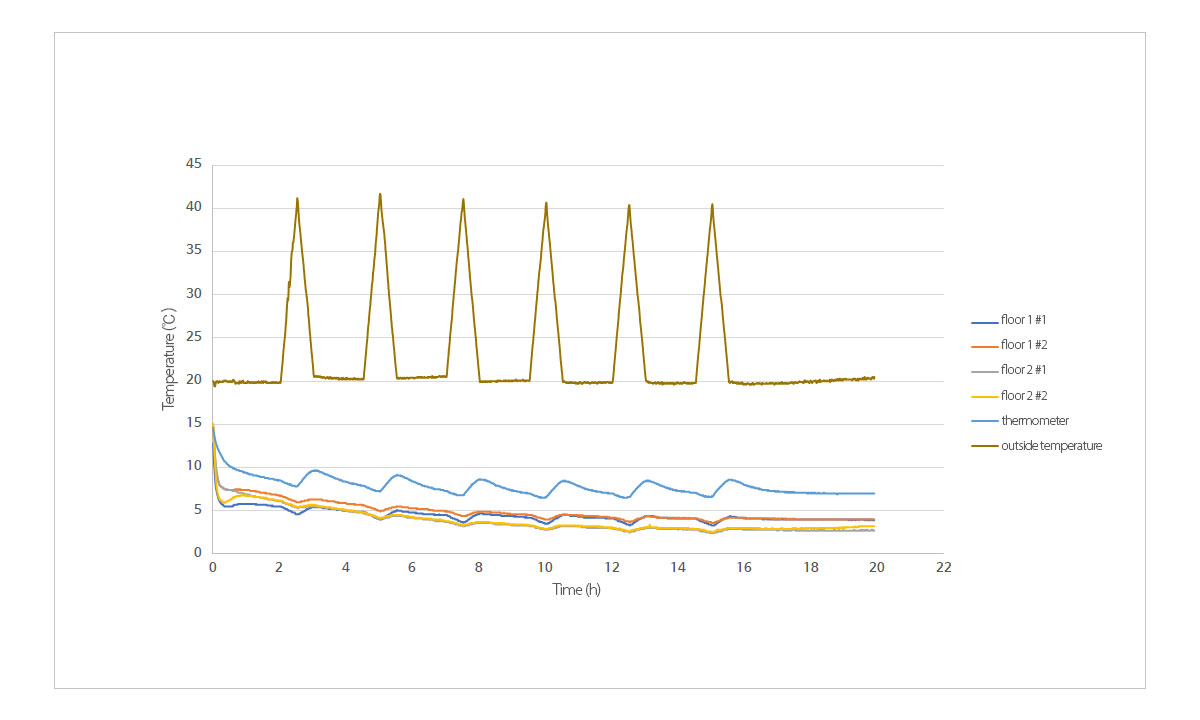

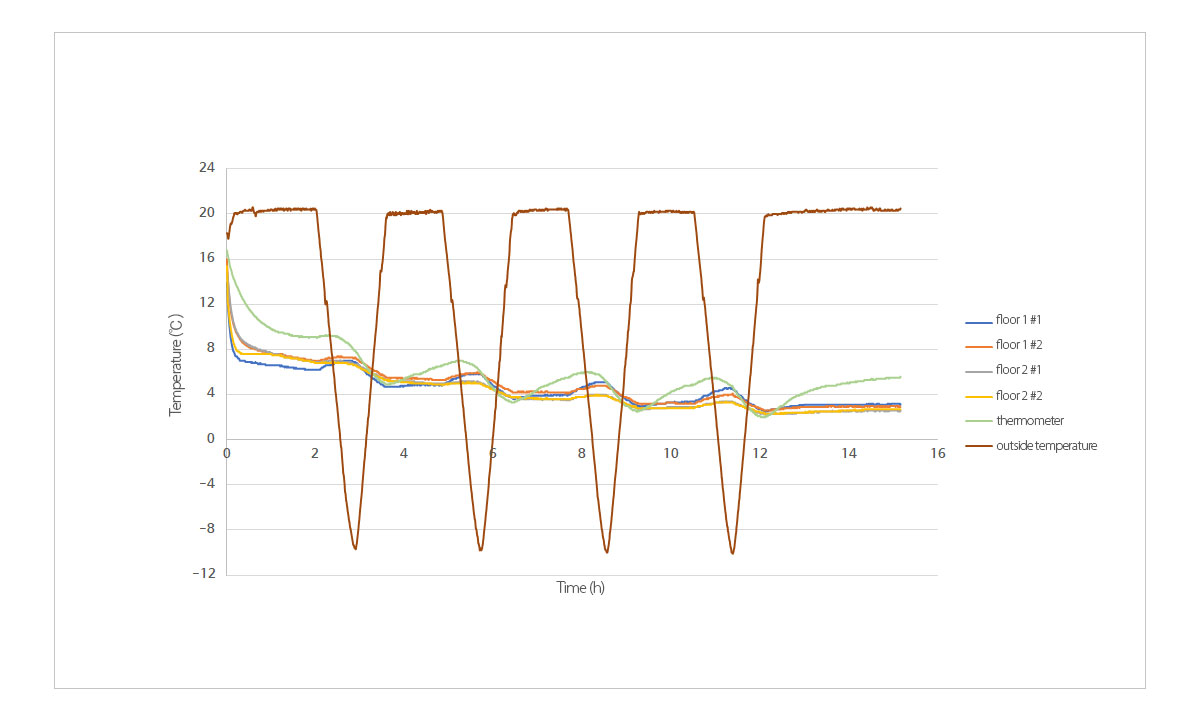

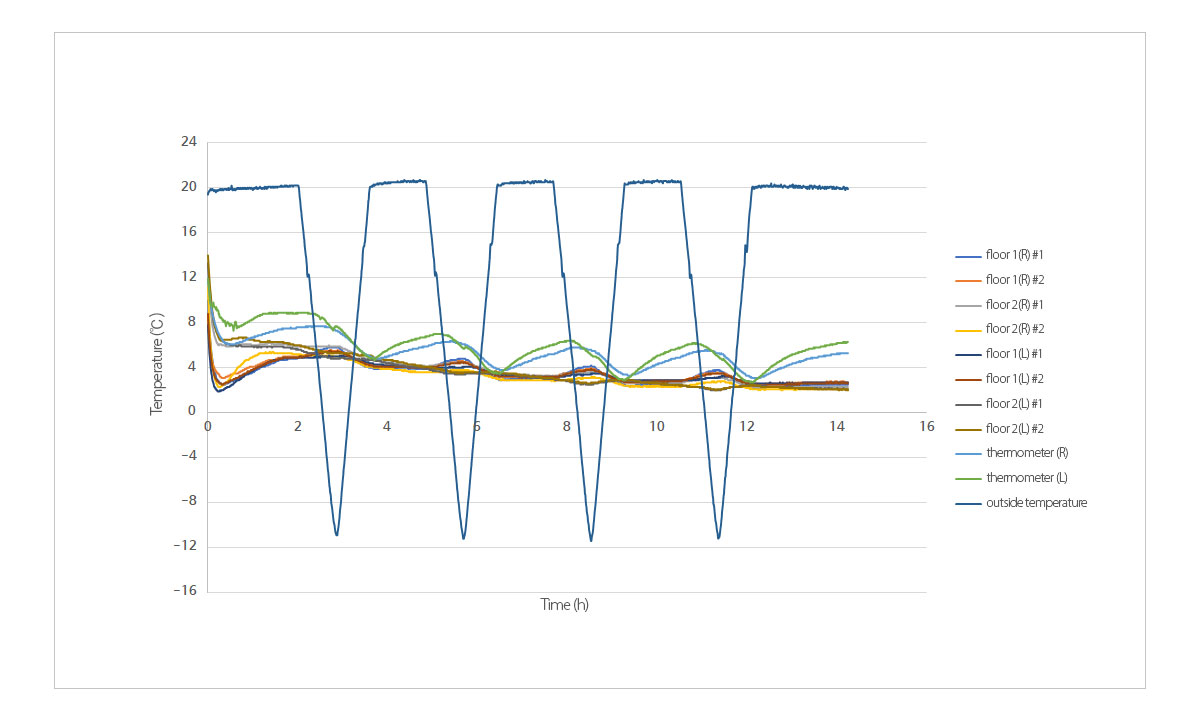

Performance

Model
-
Time
SUMMER
Time
WINTER
Small
-hr
To be
updated
-hr
To be
updated
Medium
24hr
24hr
Large
24hr
24hr
Model
External Dim

(W x L x H)

Payload(W x L x H)
Volumetric Capacity
Purpose
Frozen
(collect)
210x210x210mm
160x160x180mm
0.6-0.7kg
for medical specimens collect
Frozen
(delivery)
415x280x210mm

365x230x170mm

1.6-1.8kg

Frozen(delivery)

Frozen(collect)

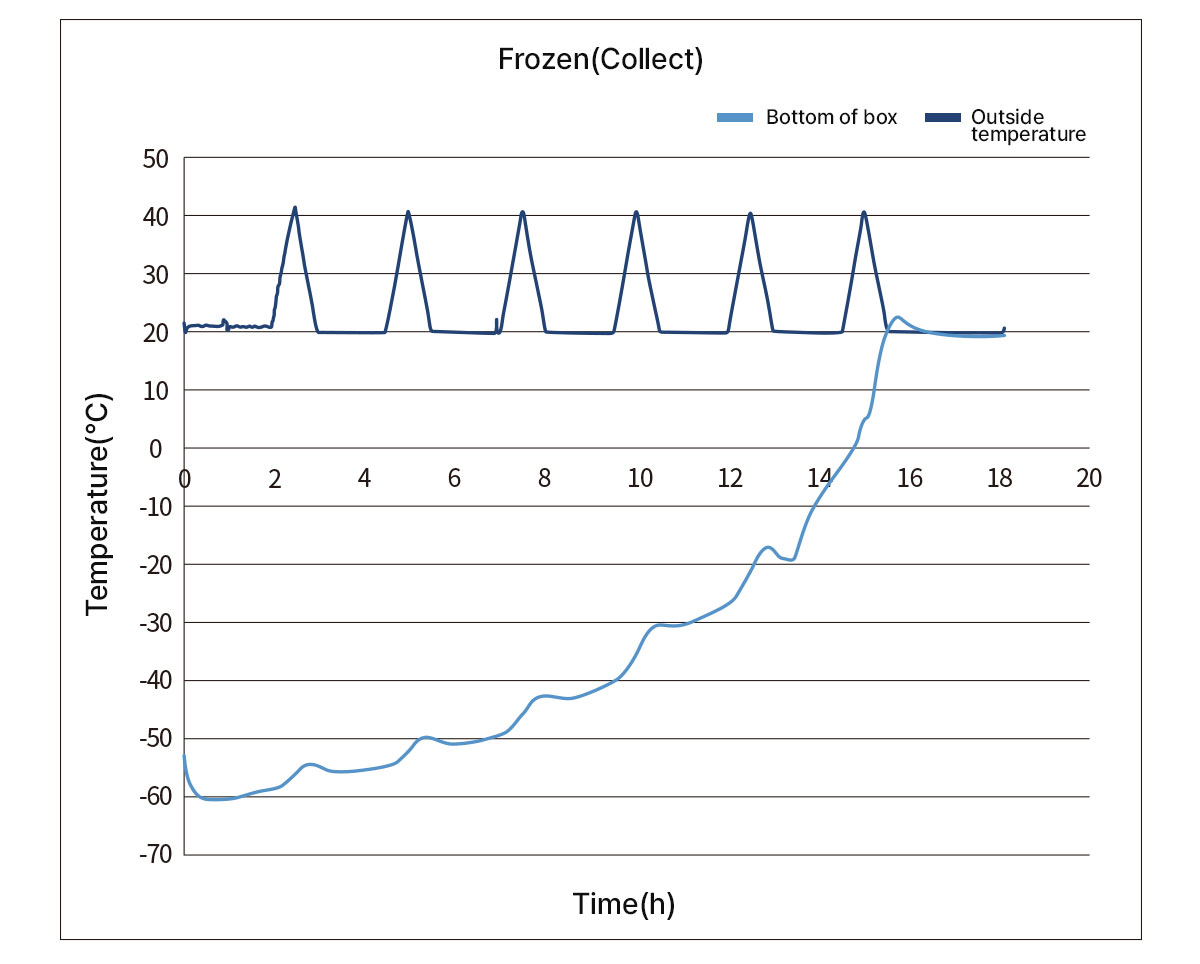

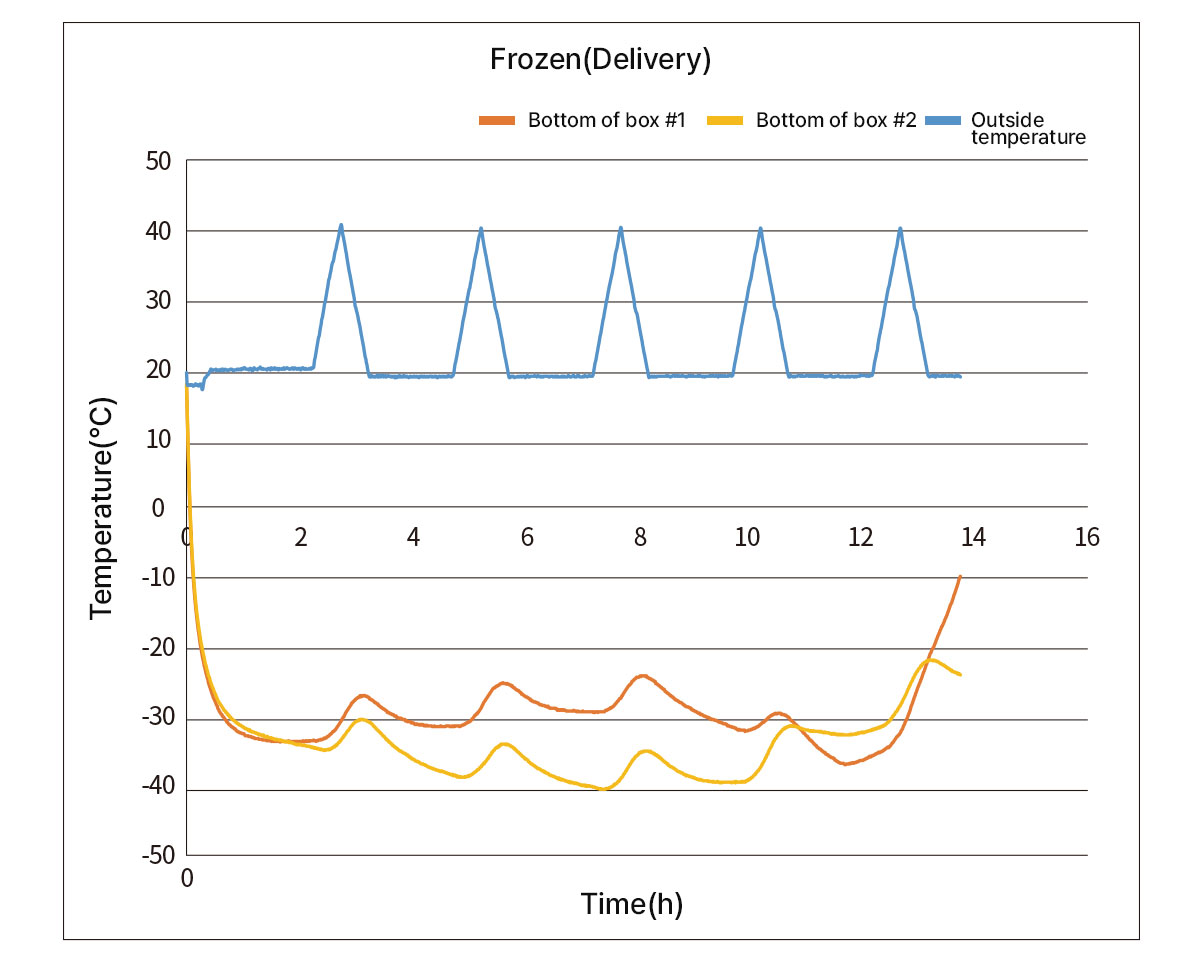

Performance

Frozen(delivery)
Frozen(collect)
AIMT Va℃-pack
  • Designed with safety factor considering the characteristics of VIP
  • Sales after full inspection to ensure consistent performance
  • Temperature data logger can be built in and eral-time monitoring is available (option)
  • Able to maintain target temperature from 24hours to 150hours
  • Customizing with various size is available

Spec.

Model
External Dim

(W x L x H, mm)

Payload Dim

(W x L x H, mm)

Volumetric

Capacity

Tare

Weight

PCM(kg)

Gross

Weight

ISTA 7D 24H
Summer
Winter
Va℃-pack 10L
370×370×360
220×220×220
11 L
5.7 kg
5.8
11.5 kg
60hr
96hr
Va℃-pack 20L
420×420×430
280×280×280
22 L
8.3 kg
6.9
15.2 kg
60hr
96hr
Va℃-pack 40L
480×480×490
340×340×340
40 L
10.4 kg
8.1
18.5 kg
60hr
96hr
Va℃-pack 60L
540×540×550
400×400×400
64 L
12.5 kg
8.4
20.9 kg
60hr
96hr
Va℃-pack 80L
620×520×530
470×390×440
80 L
14.8 kg
10.2
25 kg
60hr
96hr
Va℃-pack 110L
620×620×620
480×480×480
110 L
16.6 kg
13.4
30 kg
60hr
96hr

10L

20L

60L

SAFETAiNER 12
  • Realization of light weight (less than 10kg) compared to the same performance in Korea

    (design patent registration)

  • Optional attachment and detachment of vacuum insulation
  • Dedicated LTE thermometer holder
  • Semi-permanent use as dedicated plastic refrigerant
  • When changing the EPP magnification, the total weight of packaging is less than 6kg
  • Easy to store and handle blow PCM pack
  • More efficient transportation is possible through courier delivery companies
  • Various temperatures (refrigerated, frozen, room temperature) can be applied by replacing the blow PCM pack
Product Name

Outer Dimension

(mm)

Inner Dimension

(mm)

Pay Load

(L,mm)

PCM

Q’ty

Total Weight

(kg)

ISTA 7D
SUMMERWINTER
SAFETAiNER 12
390×390×390
310×310×310
12

230×230×230

6
8
48H+
90H+
Basic Structure
EPP Box, PCM pack 6ea, VIP 6ea, Incase, Outer cover

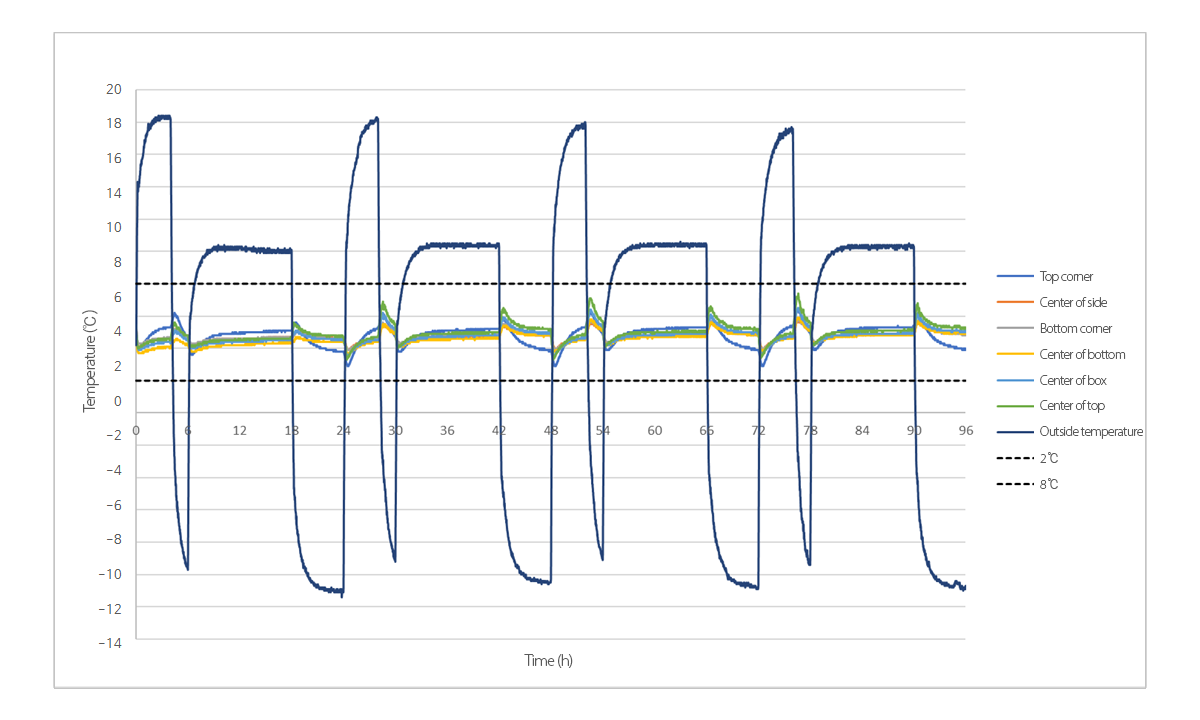

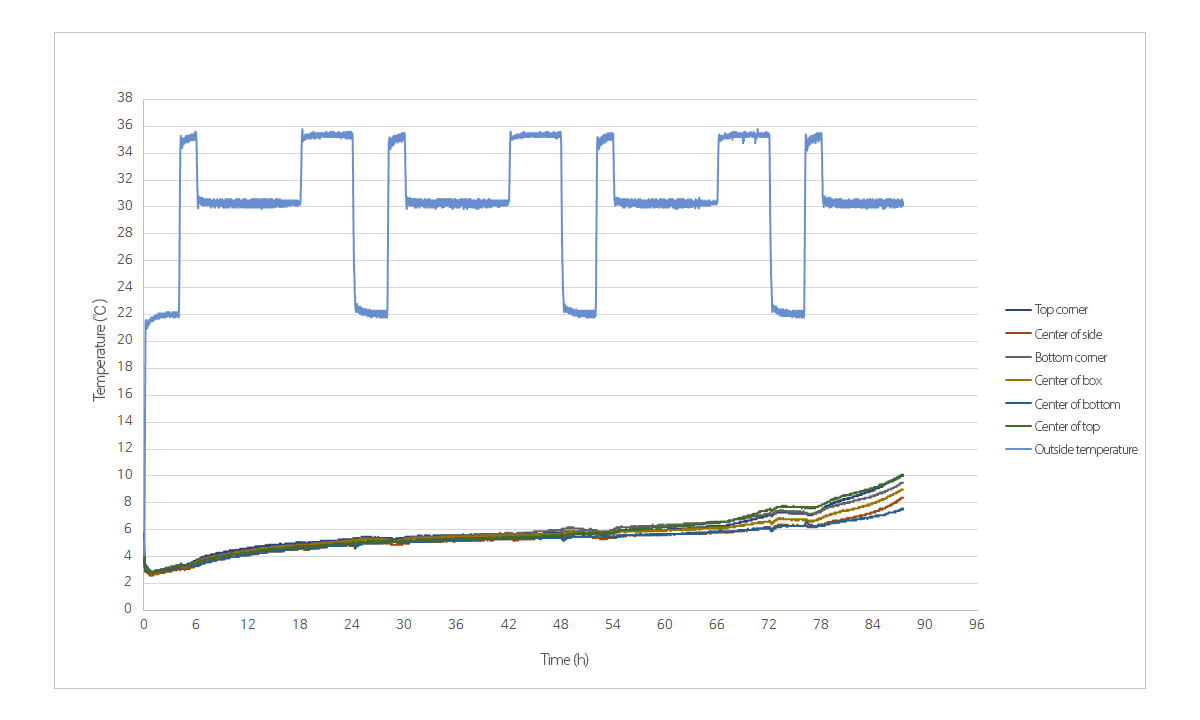

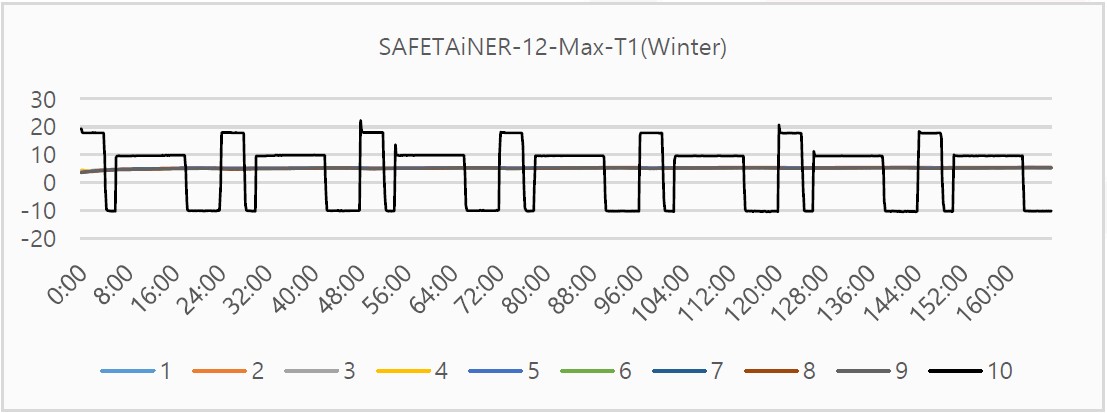

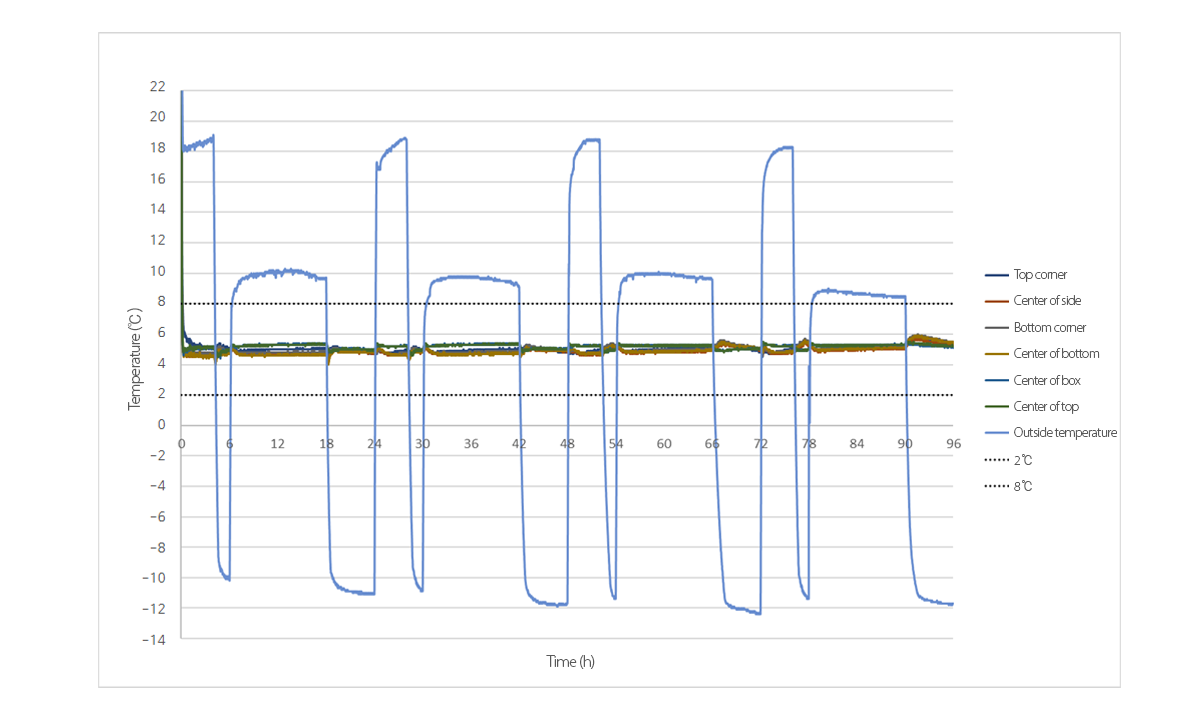

Thermal Performance

Summer
Winter
CUBE P-17
  • Optimal insulation performance and durability
  • WHO Completes Performance Verification of ISTA Specification (Having KCL Test Report)
  • Reusable EPP-based biopharmaceutical shipping containers
  • Optimized structural design increases internal capacity (Pay-Load) by 30% (up to 16 liters)
  • Thermal management efficiency (insulation performance) increased by 30%, heat bridge minimization structure
  • Use of EPP materials increases durability by 50% and productivity by 30%
  • Provide dedicated PCM trays and use reusable eco-friendly materials
  • Special Insulation (VIP) Internal Insertion Structure for Optimal Temperature Management and Insulation Protection
Product Name

Outer Dimension

(mm)

Inner Dimension

(mm)

Pay Load

(L,mm)

PCM

Q’ty

Total Weight

(kg)

ISTA 7D
SUMMERWINTER
CUBE P-17
430×450×420
310×310×310
16

250×250×250

6
14.8
72H
72H
Basic Structure

PCM : 5℃ (Single PCM Type)                  BOX : EPP (Expanded Polypropylene)

COVER : Fabric or Danpla                        Can be installed as a separate data logger in the front pocket

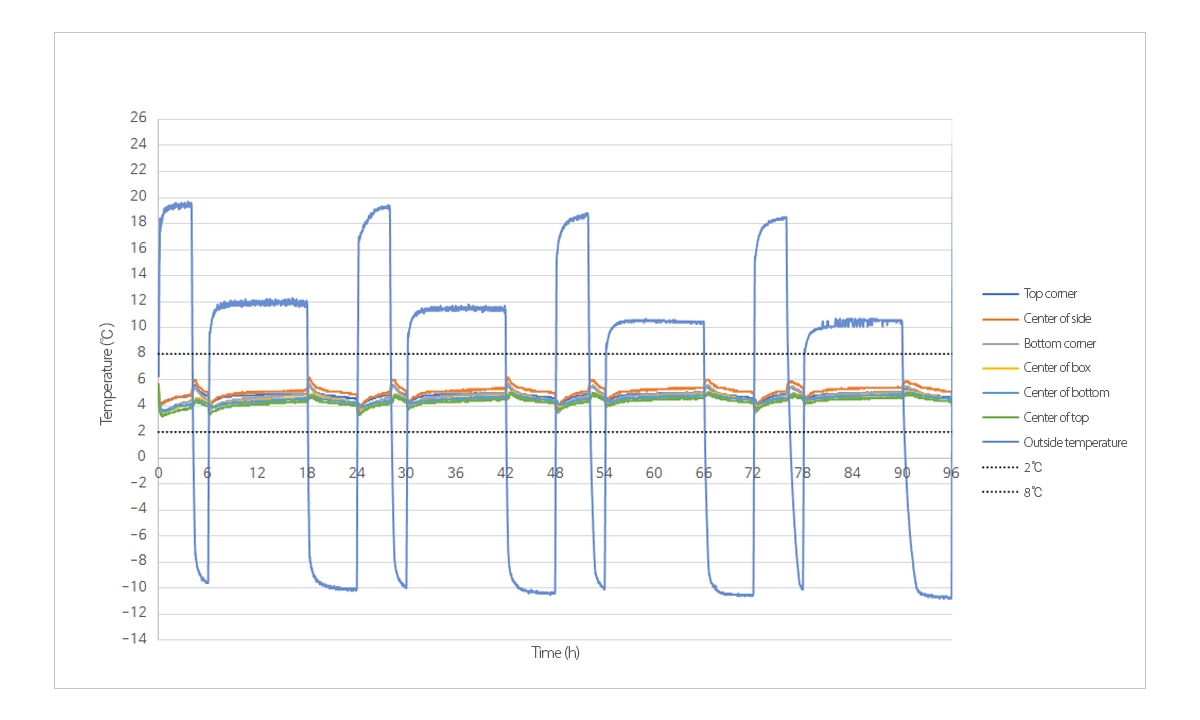

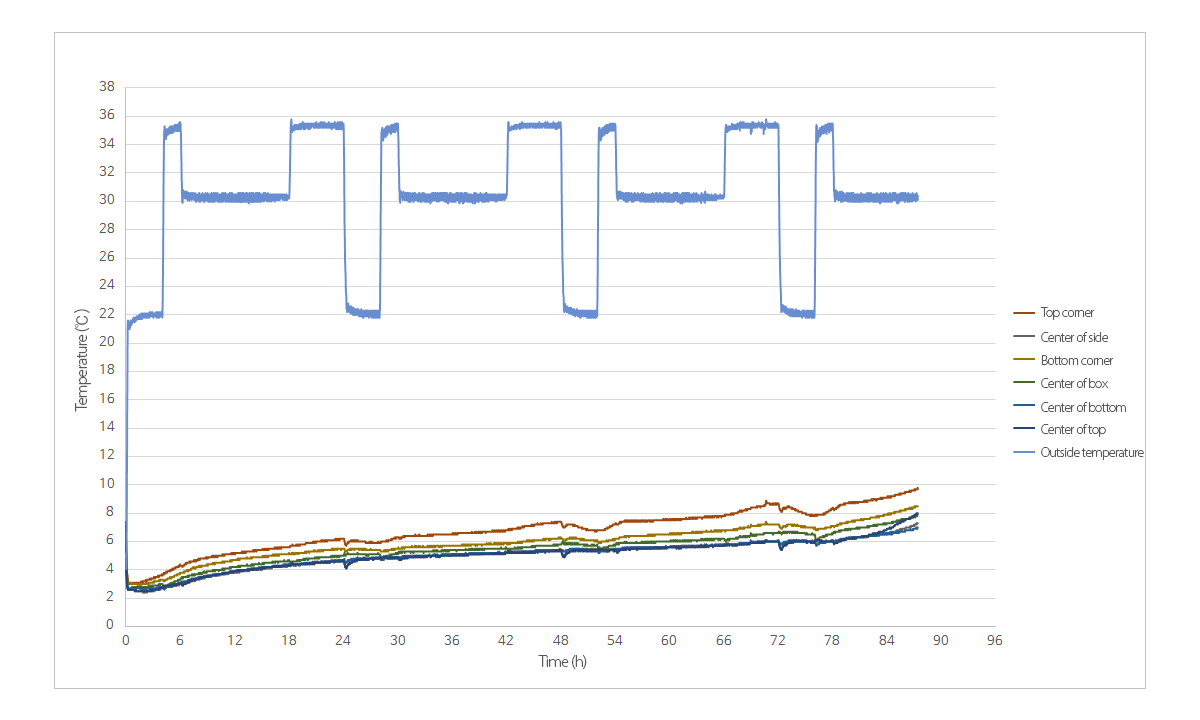

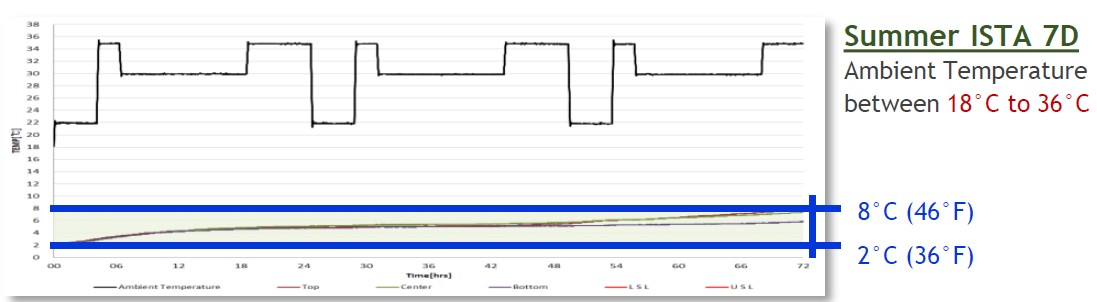

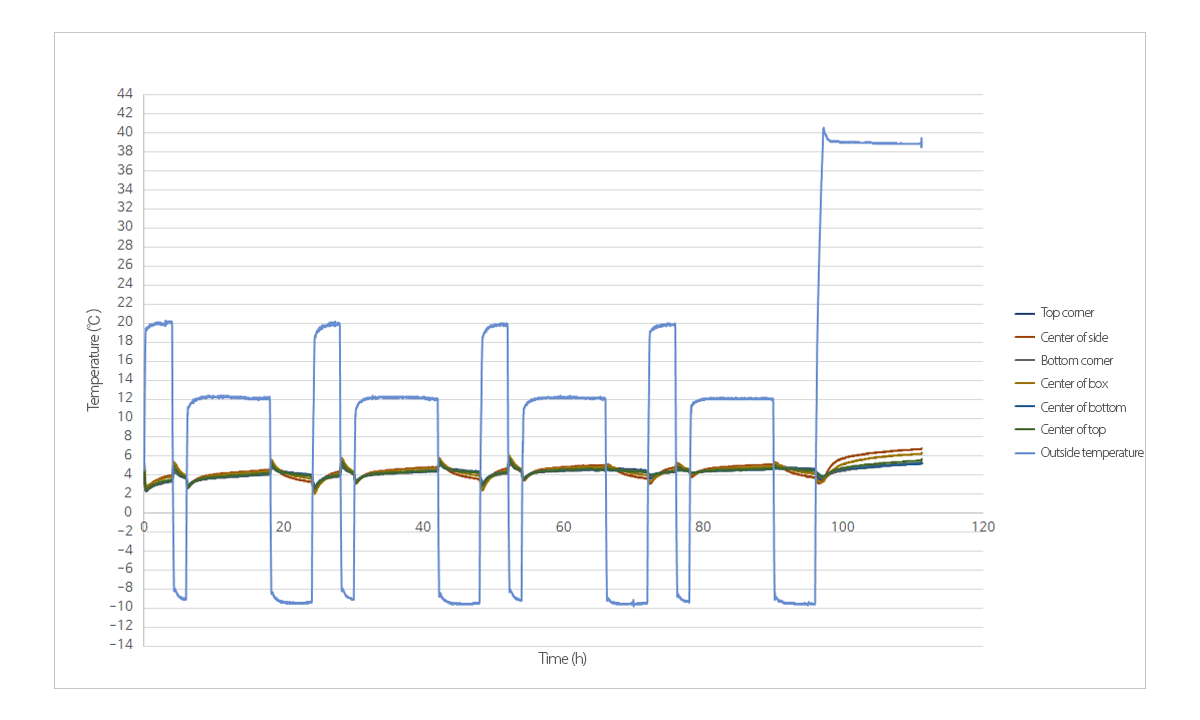

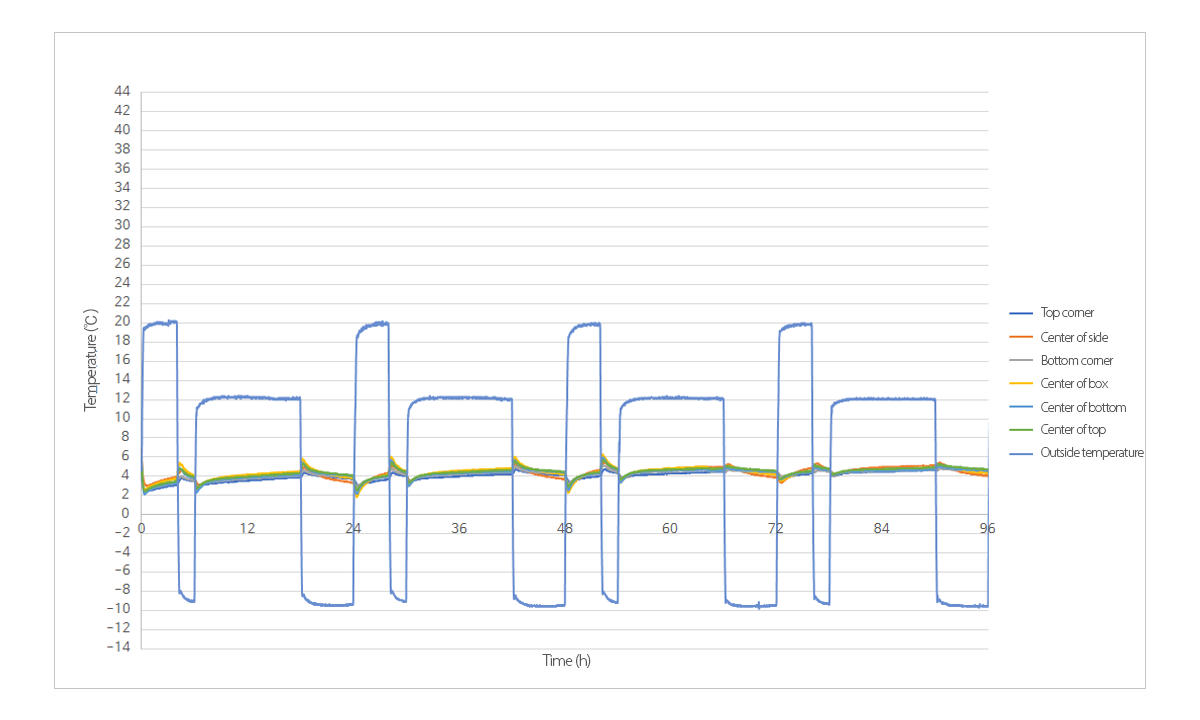

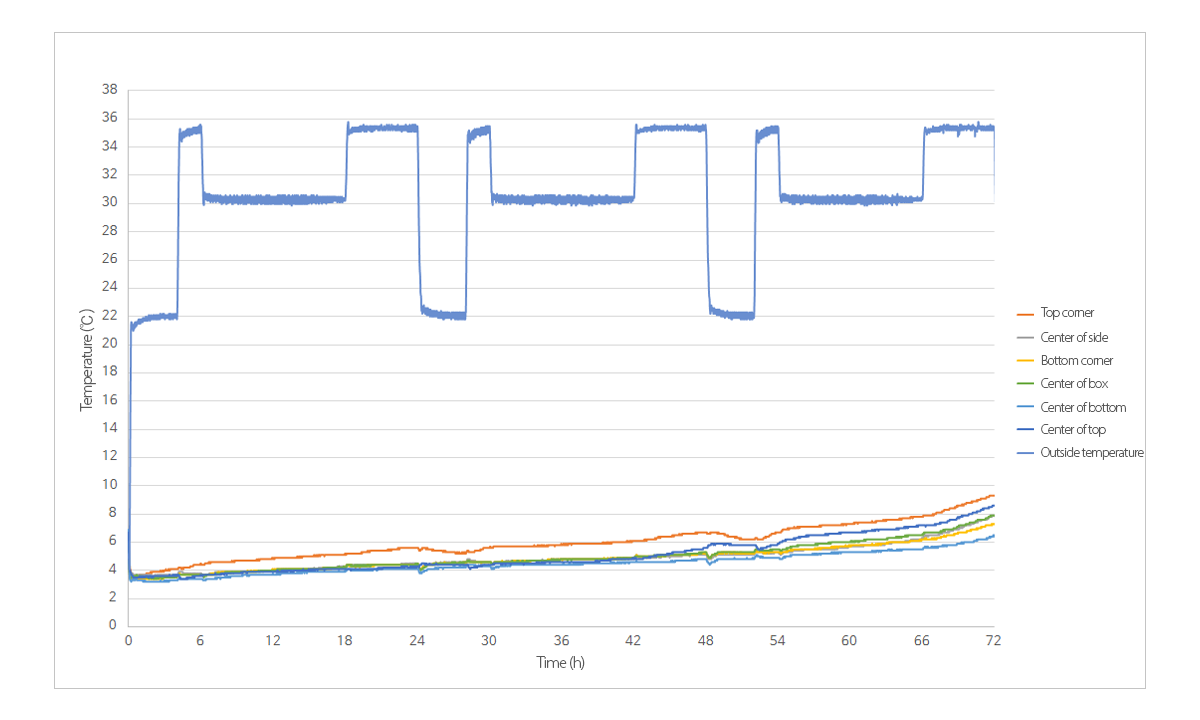

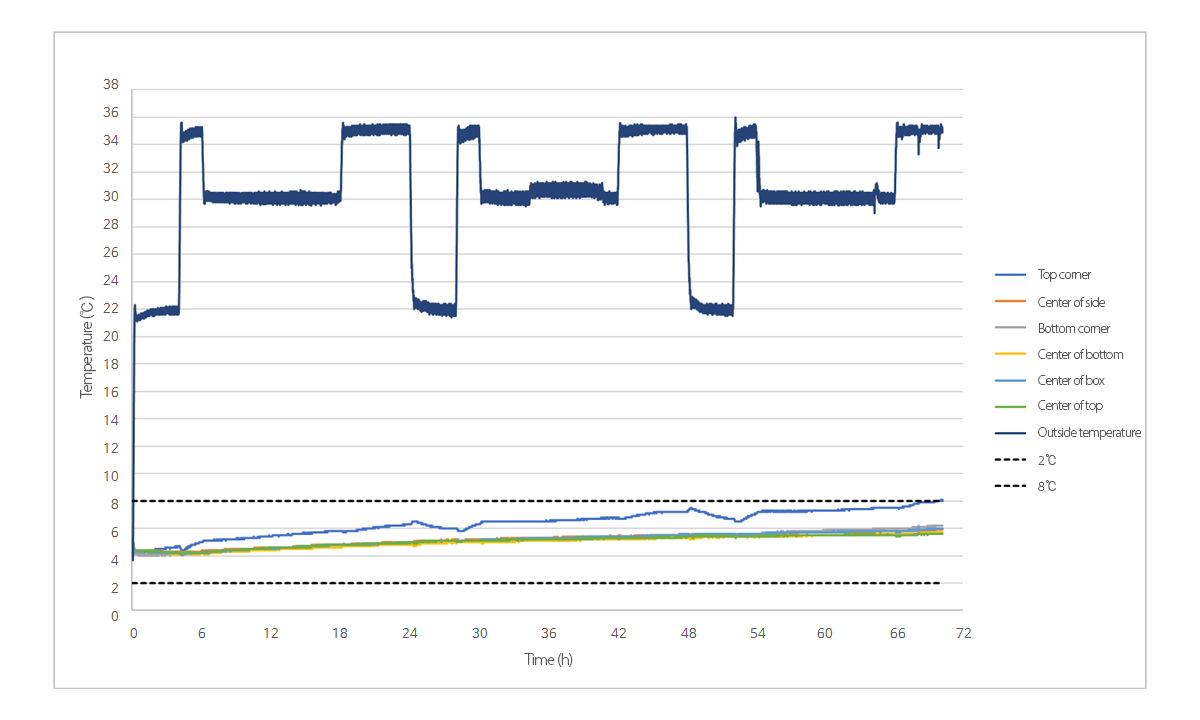

Thermal Performance

Summer
Winter
BP-BAG
  • Innovative in-case technology enables all four seasons to be used as the same refrigerant

  • Maintain accurate temperature for up to 12 hours for biopharmaceutical transport

  • Suitable for short-distance transport such as blood and samples

  • Use Reusable Refrigerant Pack for Maximum Economic Efficiency (SAP)

  • Minimize heat release (heat bridge) by applying special sensor holes and special insulation zippers

  • Various capacities and designs can be customized (5-20 liters)

  • Reusable materials enable eco-friendly operation

Product Name

Outer Dimension

(mm)

Inner Dimension

(mm)

Pay Load

(L,mm)

PCM

Q’ty

Total Weight

(kg)

ISTA 7D
SUMMERWINTER
BP-BAG
350×260×290
290×200×220
9.5

250×200×190

4
3.7
12H
12H+
Basic Structure

PCM : 0℃ (Single PCM Type) (PCM Total 4ea, 2.7kg : 1 kg, 2ea / 0.35kg, 2ea)

IN CASE : PE Foam & Tarpaulin

COVER : High Density Fabric Type

Can be installed as a separate data logger in the front pocket

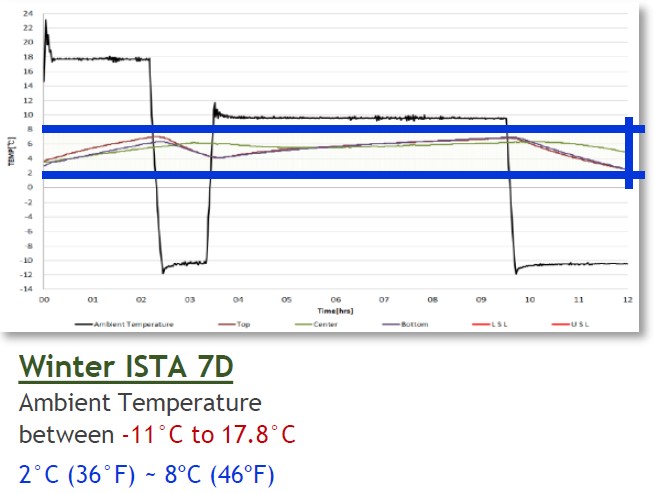

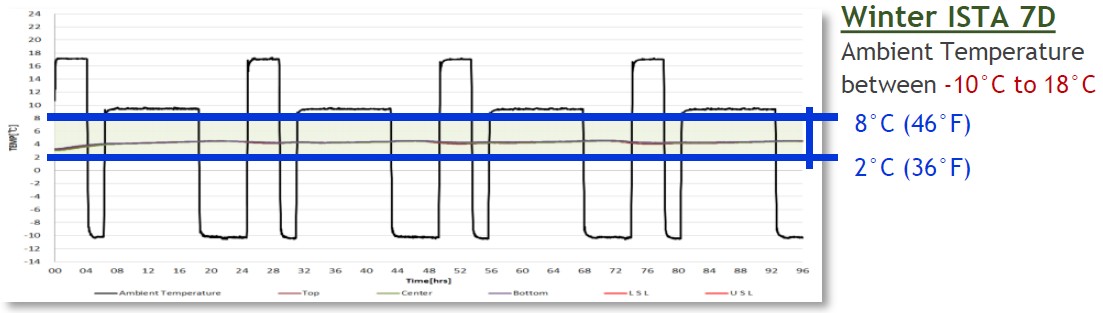

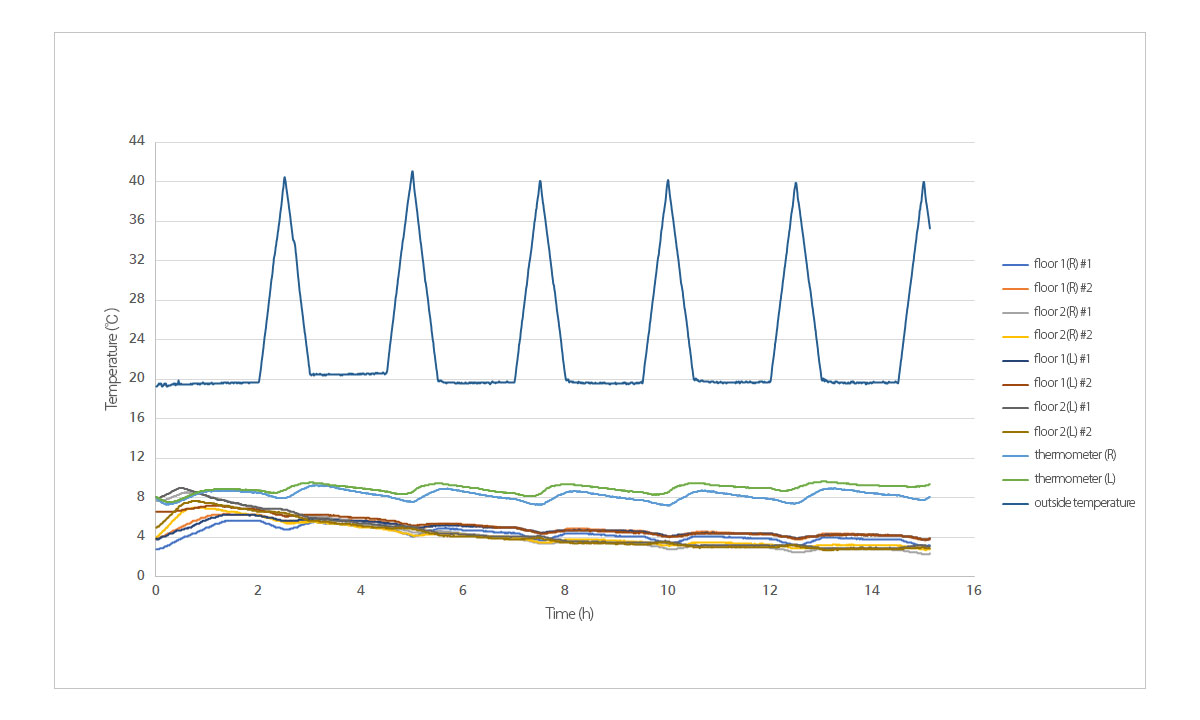

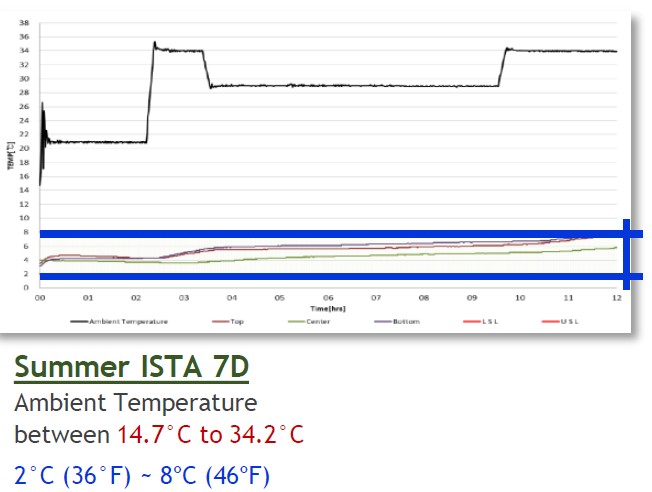

Thermal Performance

Summer
Winter
AIMT Cold chain Packaging
  • Made up of eco-friendly recycled PET insulation material and high-tech vacuum insulation panel
  • Temperature data logger can be built in and real-time monitoring is available (option)
  • Customizable with various size
Model
External Dim
(W x L x H)
Payload Dim
(W x L x H)
Volumetric Capacity
Tare Weight
Purpose
Ultra small
290x260x270 mm
250x220x220 mm
5 L
1.6-1.8 kg
for medical specimens collect
(General or Vehicle)
Small
435x280x270 mm
395x240x230 mm
10 L
2.5-2.8 kg
Meduim
510x270x385 mm
470x230x345 mm
20 L
3.5-3.9 kg
Large
530x510x420 mm
490x470x380 mm
54 L
7-7.5 kg
for medical specimens delivery

Ultra small

small

Medium

Large

Performance

Model
-
Time
SUMMER
Time
WINTER
small
-hr
To be updated
-hr
To be updated
Medium
24hr
24hr
Large
24hr
24hr
Meodel
External Dim (W x L x H)
Payload Dim (W x L x H)
Tare Weight
Purpose
Frozen(collect)
210x210x210 mm
160x160x180 mm
0.6-0.7 kg
for medical specimens collect
Frozen(delivery)
415x280x210 mm
365x230x170 mm
1.6-1.8 kg

Frozen(delivery)

Frozen(collect)

Performance

Frozen(delivery)
Frozen(collect)
