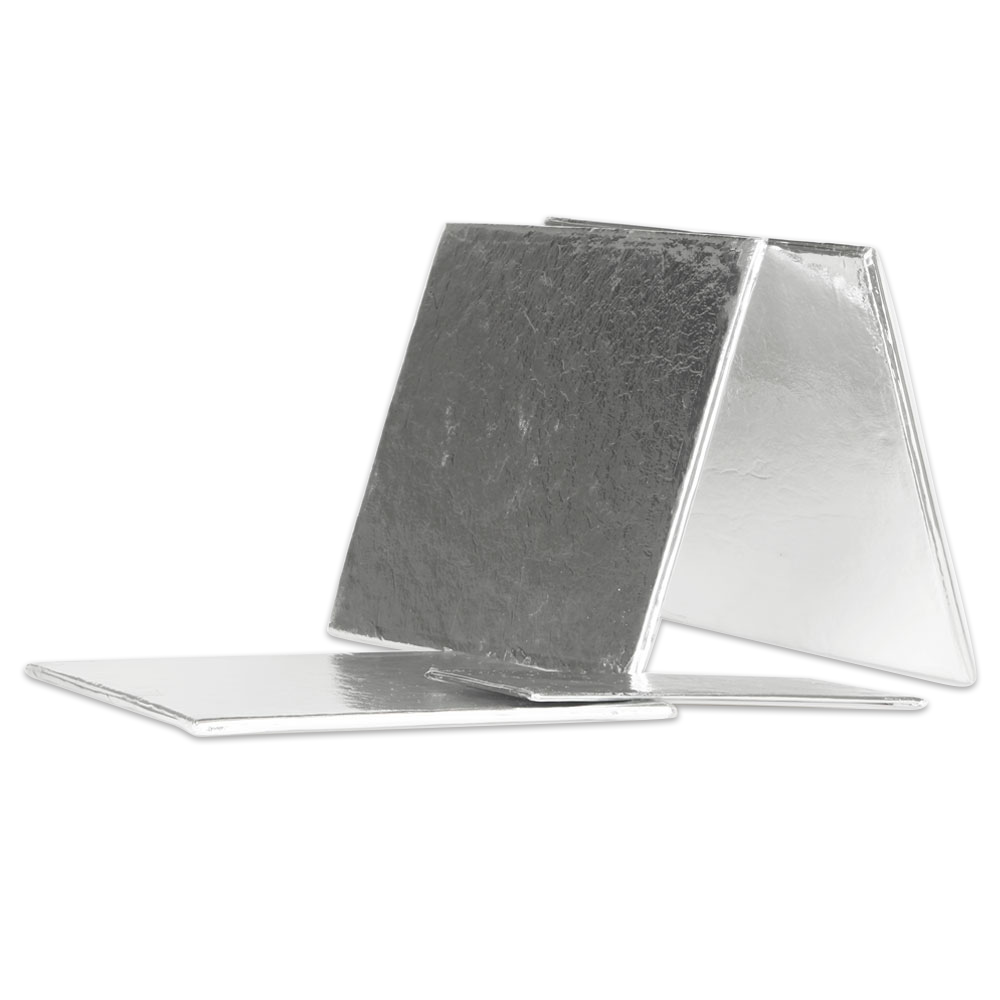

AIMT Vacuum insulation panels

Thanks to the AIMT’s unique technology that minimizes the heat bridge effects, AIMT’s VIP have the best insulation performance in the industry.

Next-generation insulation material

with high energy efficiency

AIMT’s VIP, composed of high barrier film (metallized or ceramic coated film) enveloping core material (glass wool) and gas absorber (metallic oxide-based), has insulation performance of thermal conductivity below 0.002 W/mK, which is more than 10 times better than conventional insulation.

(hard urethane foam).

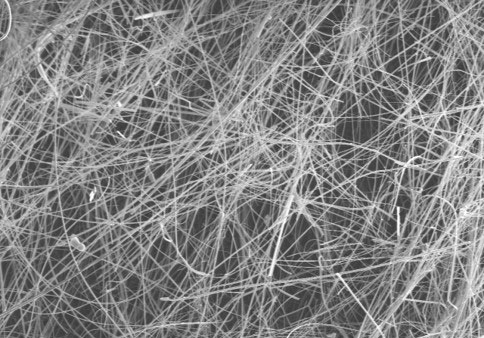

Core

AIMT’s VIP uses core material composed of glass wool (for home appliance, construction, coldchain packaging) or eco-friendly r-PET fiber (for coldchain packaging, especially for food)

-

It has an optimized porosity and pore size, ensuring not only excellent insulation performance but also long-term durability. By using fibrous material with constant diameter and length distribution, we minimize the VIP’s performance variation and maintain high quality. In addition, AIMT’s VIP has earned a non-flammable first grade in Korea, thanks to the glass wool’s excellent fire resistance and ceramic based envelope.

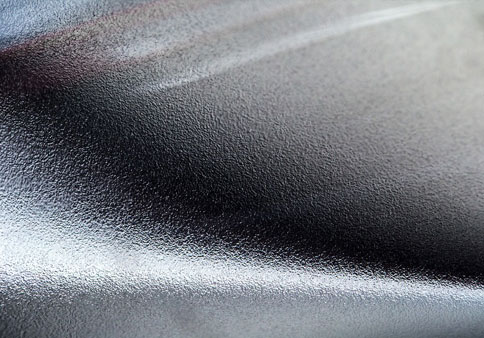

Envelope

AIMT’s VIP uses envelope made of non-metallic (ceramic based) high barrier film, which ensures high durability and reduces thermal edge effect.

-

The insulation performance is enhanced by 2~5 times compared to the Aluminum based film by minimizing heat flow along the surface of film.

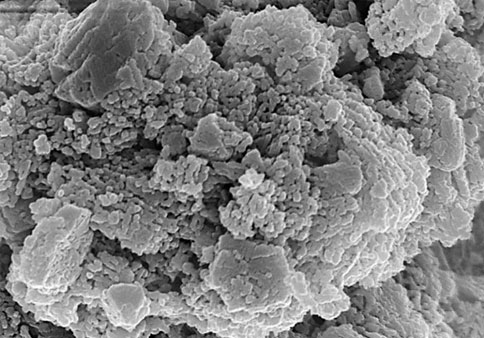

Getter

AIMT’s VIP uses gas absorber (getter) which removes various gas components (oxygen, vapor, CO2, etc) penetrating through the envelope.

-

It has a high cost-effectiveness thanks to AIMT’s own simple manufacturing processes composed of two stages of firing and mixing.

AIMT Vacuum insulation panels

Thanks to the AIMT’s unique technology that minimizes the heat bridge effects,

AIMT’s VIP have the best insulation performance in the industry.

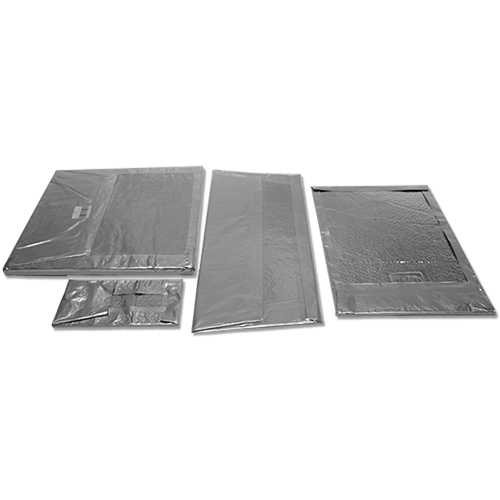

AIMT’s VIP is customizable to your needs. (Various size and thickness are possible)

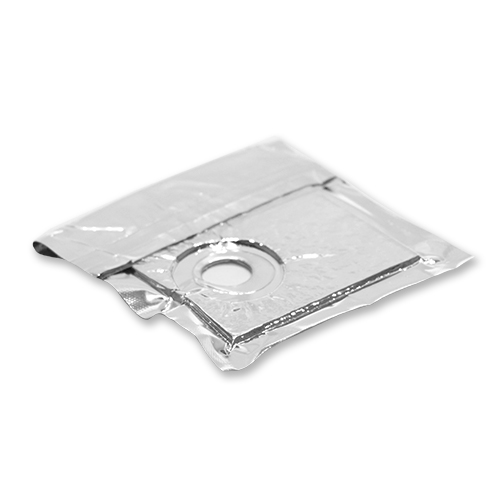

We can make VIPs with holes of various diameters for the pipe penetration.

Various shapes

Rectangle, triangle, trapezoid, circle, etc. are available.

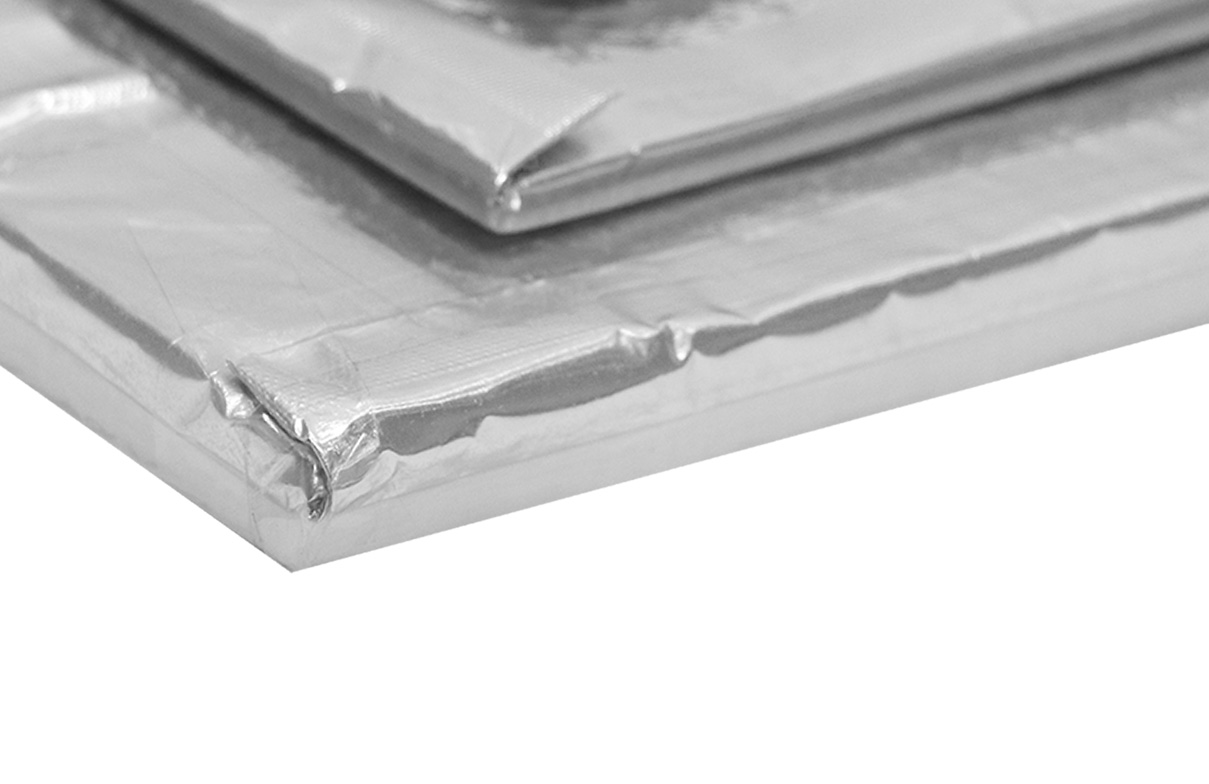

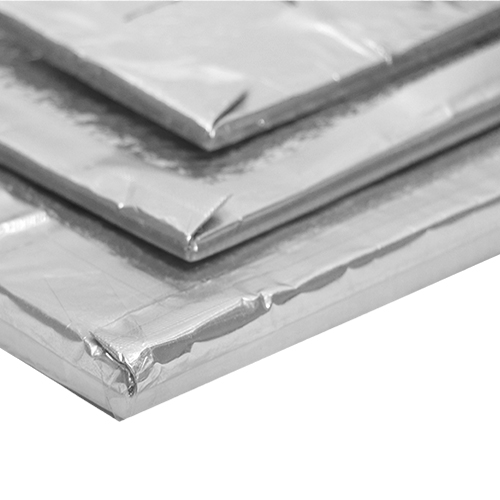

Thickness

From 2mm to 25mm depending on the purposes.

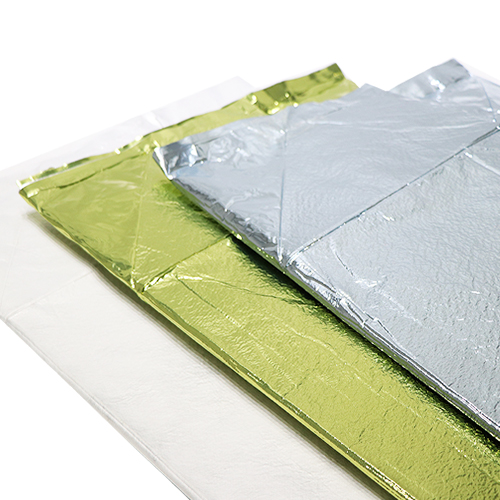

Various colors

The envelope of VIP can be dyed in

various colors.

Next-generation insulation material

with high energy efficiency

AIMT’s VIP, composed of high barrier film (metallized or ceramic coated film) enveloping core material (glass wool) and

gas absorber (metallic oxide-based), has insulation performance of thermal conductivity below 0.002 W/mK,

which is more than 10 times better than conventional insulation. (hard urethane foam)

Vacuum insulation panels by AIMT are mainly composed of evacuated core material, special outer film envelope surrounding the core,

and high performance getter.

AIMT VIP is a highly efficient superior insulation material that have ultra low thermal conductivity under 0.002 W/m.K,

which is 10 times better in insulation than commonly used insulation materials such as polyurethane foam and polystyrene.

Core



AIMT’s VIP uses core material composed of glass wool (for home appliance, construction, coldchain packaging) or eco-friendly r-PET fiber (for coldchain packaging, especially for food)


-


It has an optimized porosity and pore size, ensuring not only excellent insulation performance but also long-term durability. By using fibrous material with constant diameter and length distribution, we minimize the VIP’s performance variation and maintain high quality. In addition, AIMT’s VIP has earned a non-flammable first grade in Korea, thanks to the glass wool’s excellent fire resistance and ceramic based envelope.


Envelope



AIMT’s VIP uses envelope made of

non-metallic (ceramic based)

high barrier film, which ensures

high durability and reduces thermal edge effect.


-


비The insulation performance is enhanced by 2~5 times compared to the Aluminum based film by minimizing heat flow along the surface of film.









Getter



AIMT’s VIP uses gas absorber (getter)

which removes various gas components (oxygen, vapor, CO2, etc) penetrating through the envelope.



-


It has a high cost-effectiveness

thanks to AIMT’s own simple manufacturing processes composed of two stages of firing and mixing.









Envelope & Getter Performance

AIMT’s VIP is customizable to your needs.

(Various size and thickness are possible)

We can make VIPs with holes of various diameters for the pipe penetration.

Various shapes - Rectangle, triangle,

trapezoid, circle, etc. are available

Thickness

From 2mm to 25mm depending on the purposes.

Various colors

The envelope of VIP can be dyed in various colors.
